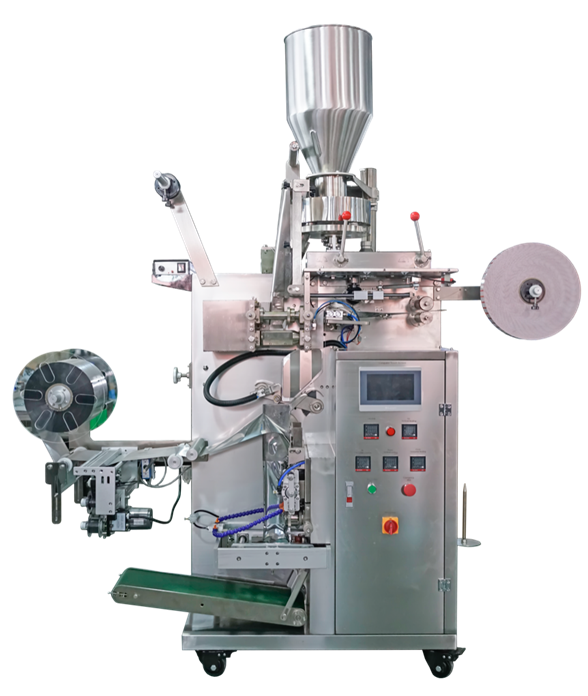

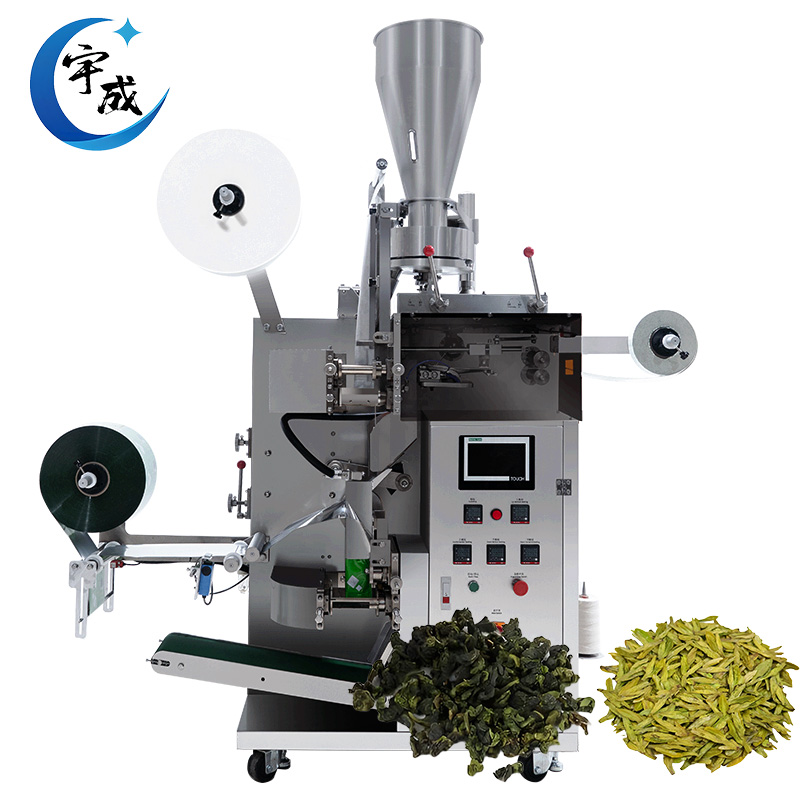

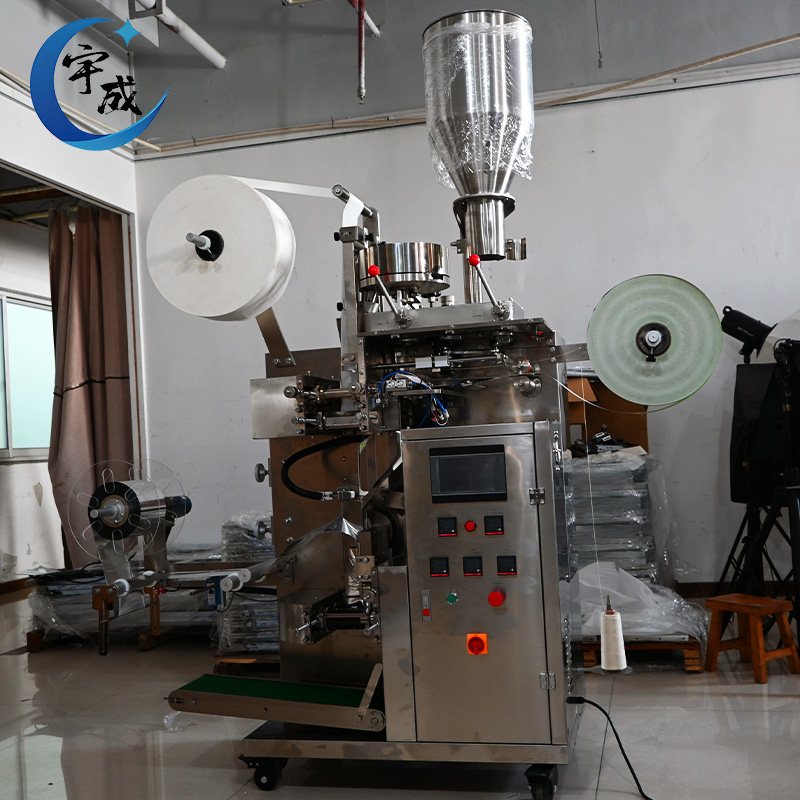

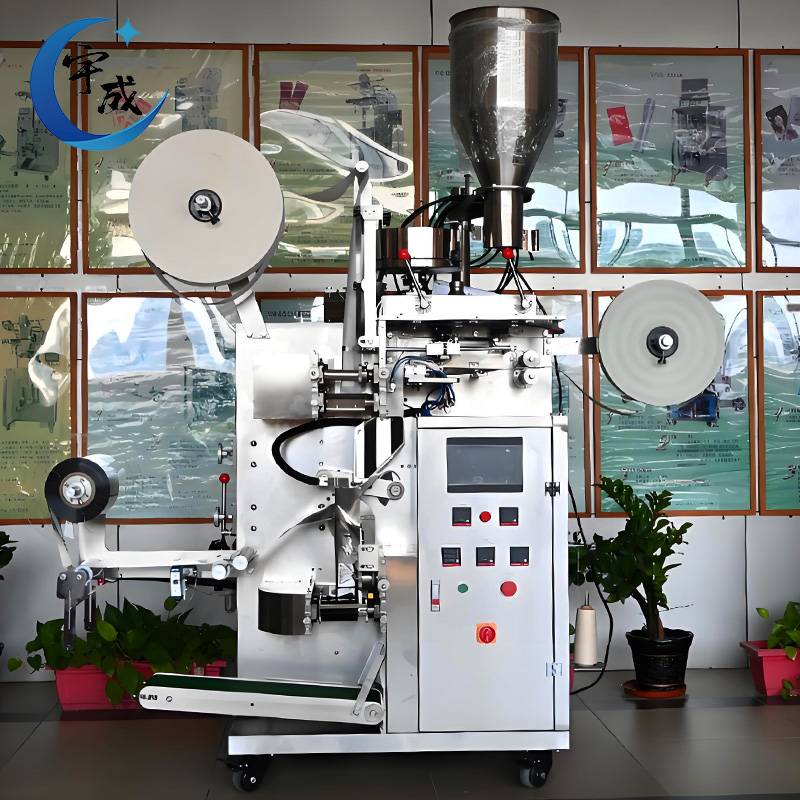

YC-169 New generation of inner and outer bag packaging machine for black tea, green tea, Pu'er tea and other types of tea

Characteristic

1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.

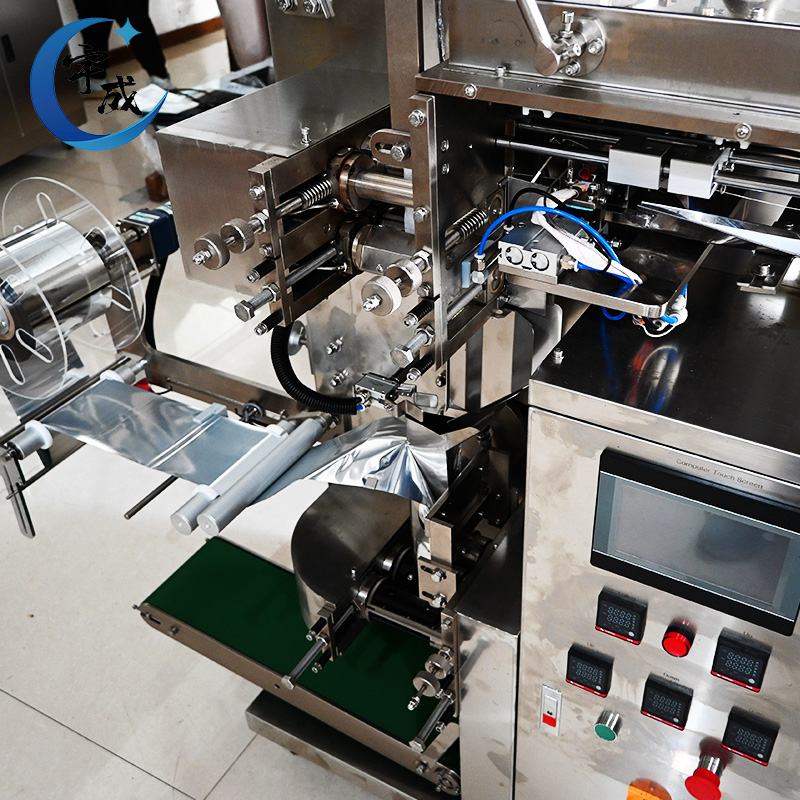

2、Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.

3、The temperature controller is adjusted by PID to make the temperature control more accurate.

4、Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products

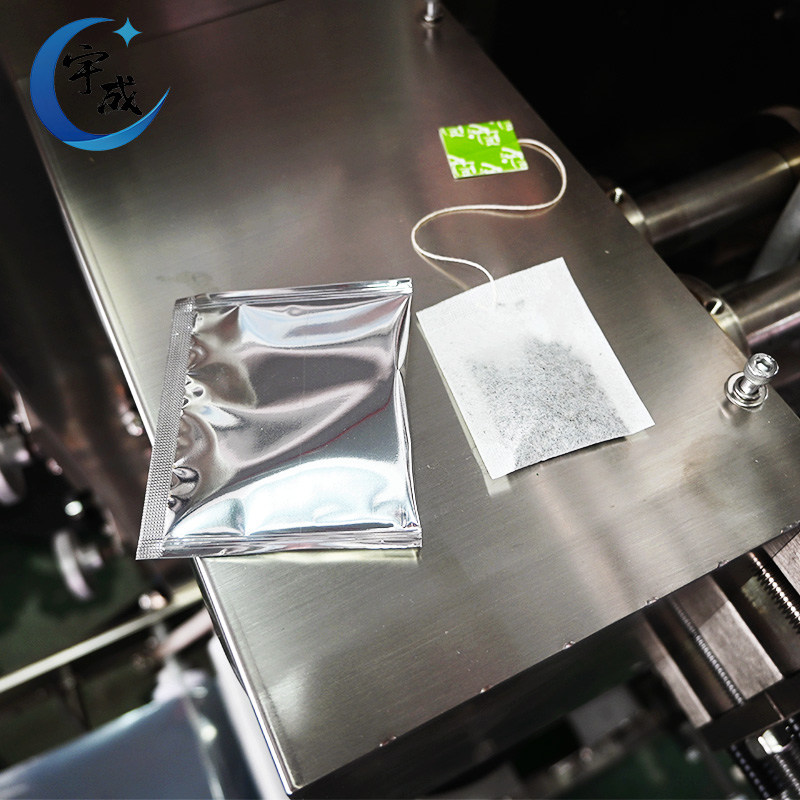

5、Packing material：filter paper, thread, composite membrane and labels.

Sealing Type

Three sides sealing

Technical Parameters

Measuring Scope：1 - 10 g

Inner bag size ( L ) ：50 - 70 mm  ( W ) ：45 - 80 mm

Outer bag size ( L ) ：70 - 140mm ( W ) ：60 - 110 mm

Packing Speed：30-50 bags / min

Dimension ( L*W*H ) ：1805*731*2065mm

Weight：550 kg

Total Power：AC220V/ 50Hz /3kw

Gas source：≥0.6Mpa
