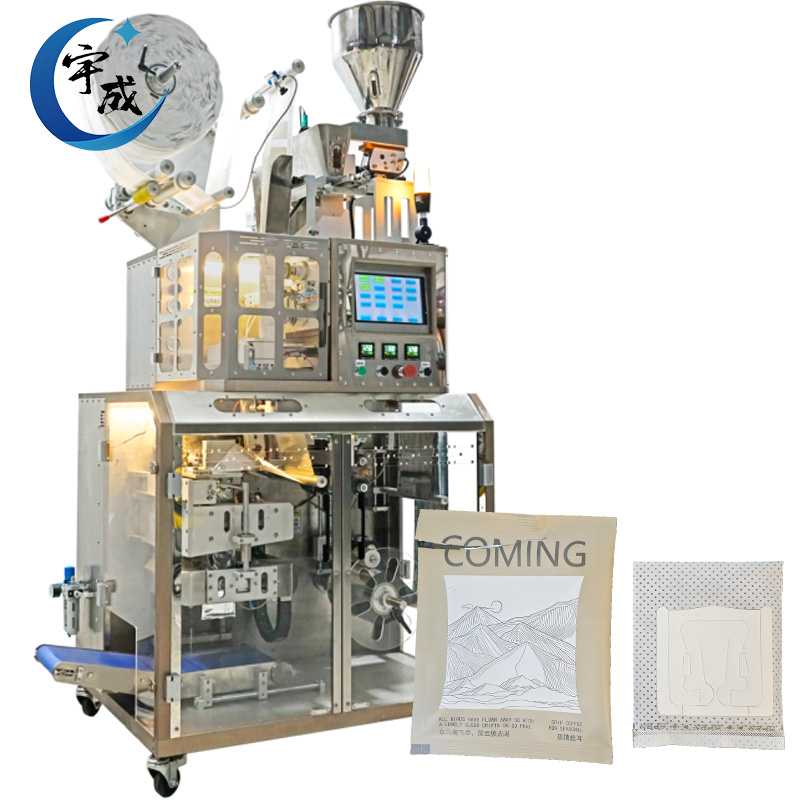

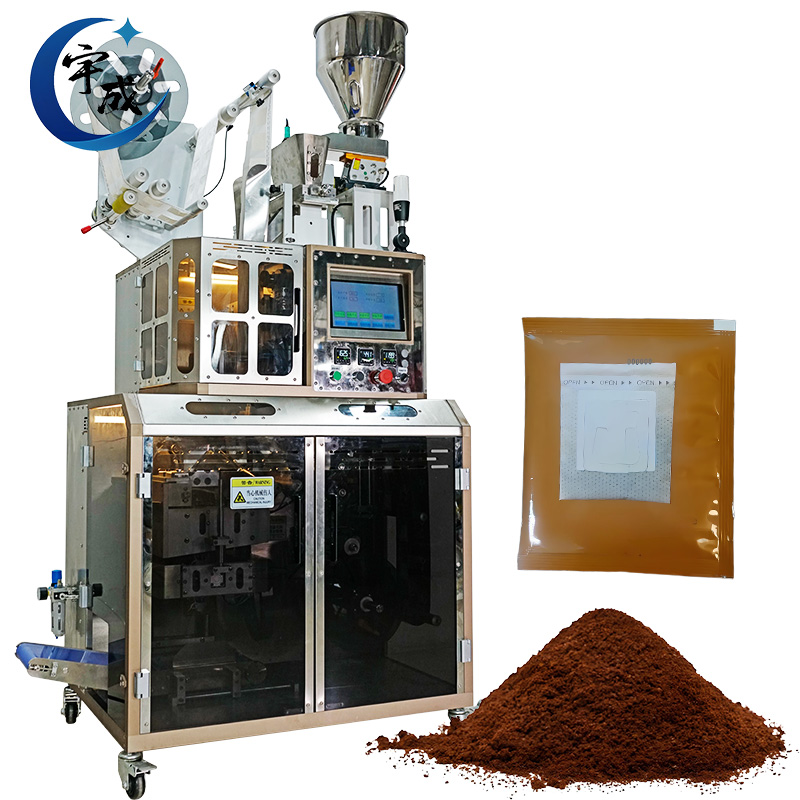

YC-188X High speed drip coffee bag（inner and outer）packing machine

Characteristic

1、The machine is suitable for ground coffee and small particulate material.

2、Adopt the special drip filter bag with three-sides sealing, which can be  directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.

3、The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.

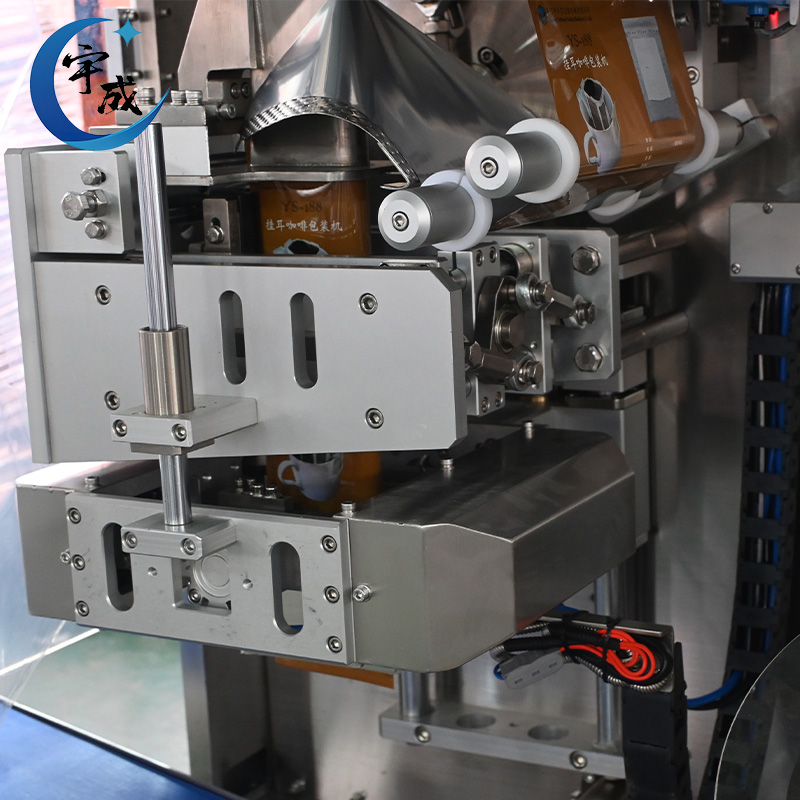

4、The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced  ultrasonic sealing, perfect sealing and beautiful bag type.

5、Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.

Sealing Type

Three sides sealing

Technical Parameters

Measuring Scope：1 - 15 g

Inner bag size  ( L ) ：70-80 mm   ( W ) ：90/95 mm

Outer bag size  ( L ) ：120 -125mm  ( W ) ：100/105 mm

Packing Speed：30-60 bags/min

Dimension ( L * W * H ) ：1210 * 832 * 2141 mm

Weight：440 kg

Total Power：AC220V / 50Hz / 3.7kw

Gas source ：≥0.6Mpa
